IceFree Eave Panel Product

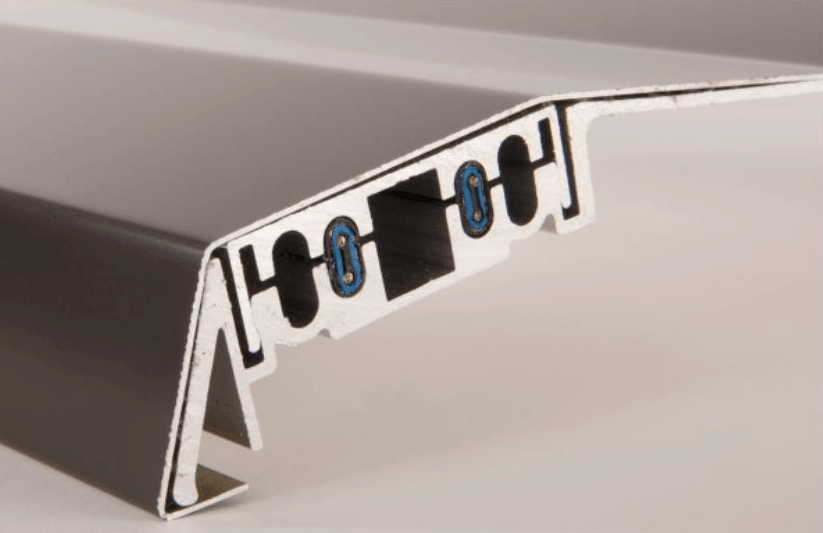

The IceFree Eave Panel 8″ is a simple one-piece aluminum alloy panel system that eliminates icicles, ice dams, and snow at the roof’s edge.

Title
Button
Title
Button
Title
Button

Title
Button

Title
Button
Title
Button
Title
Button

Specifications

IceFree Eave Panels & Heated Roof Panels

Material Selection

Recycled Aluminum Alloy 6063, Temper – T5

Color

Decorative Metal Cladding

Panel Size

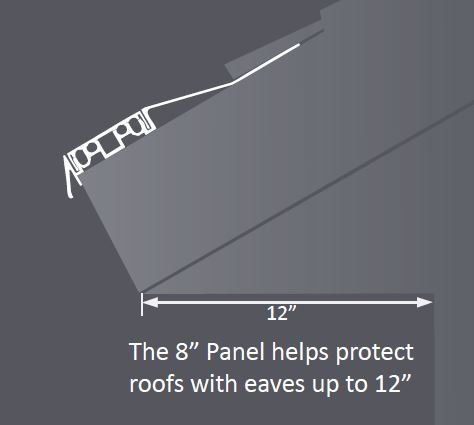

8″ x 5′ or 8" x 10' – Designed to eliminate icicles and ice dams on roof eaves up to 12″ wide

Heating Systems

Commercial Grade-Self Regulating Heat Cable (min. 5 Watt per foot in 100-130 VAC or 208-240 VAC). The IceFree Eave Panel 8″ requires 2 feet of heat cable per foot of panel. Designed with 11mm or 13mm heat cables.

Components

The IceFree Eave Panel Includes: Aluminum Alloy Snap-Loc Top, Aluminum Alloy Base Panel

Optional Items

Ambient and/or moisture sensor controllers; self-regulating heat trace for gutters and downspouts

Electrical Requirements

N.E.C. 426-28 requires 30mA ground fault circuit protection for snow and ice melting applications.

Attention: The IceFree Eave Panels in 8", 12" and 18" are not available in California.

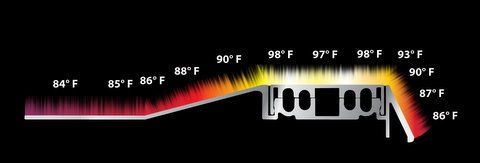

Direct Heat Transfer

Built to Be the Most Energy-Efficient

All of our products can incorporate different types of heat sources, such as 11-14mm self-regulating heat cable, mineral insulated cable and hydronic/radiant tubing. Engineered Roof Deicing's technically advanced aluminum alloy extrusions are manufactured with specifically sized heat cables.

Engineered Roof Deicing is proud to use 100% recycled aluminum.

COLOR SELECTION

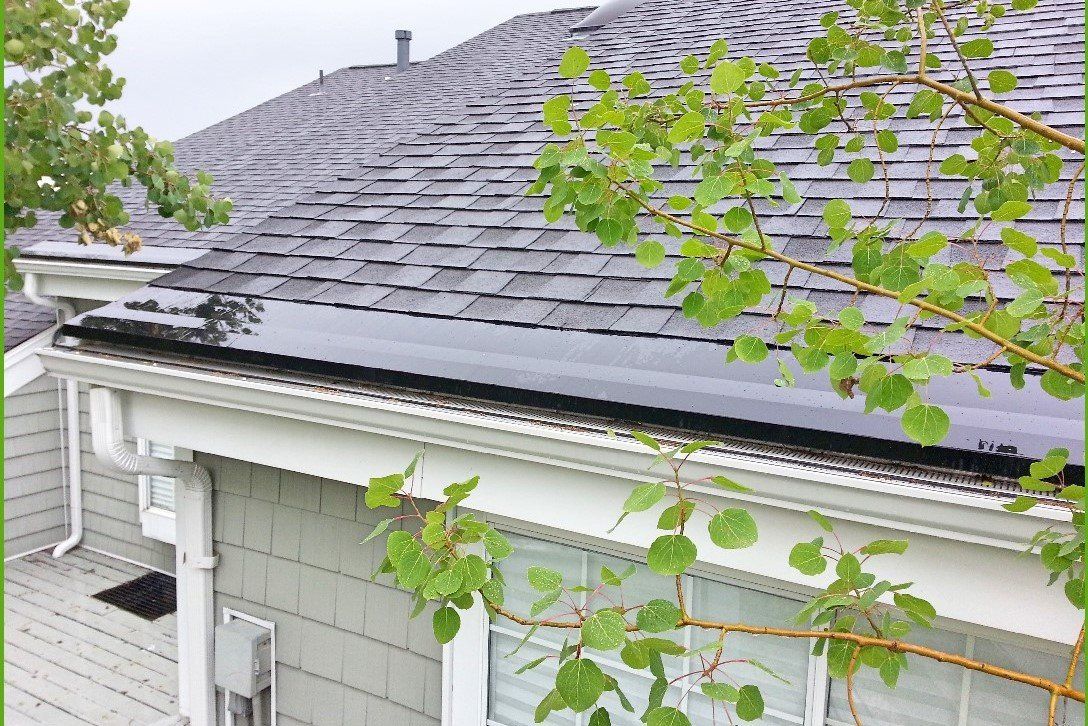

IceFree Eave Panels are available with a decorative metal cladding, such as copper, zinc, CoreTen, or mill finish and .032 gauge aluminum flat sheet colors. The decorative metal cladding provides a cost-effective, attractive finish that will complement the look of your home.

IceFree Eave Panel Colors IceFree Zone System Colors

The silicone-modified polyester coatings on IceFree Zone Systems carry a 30-year warranty.
