Keep Your Roof Free of Ice and Snow Damage

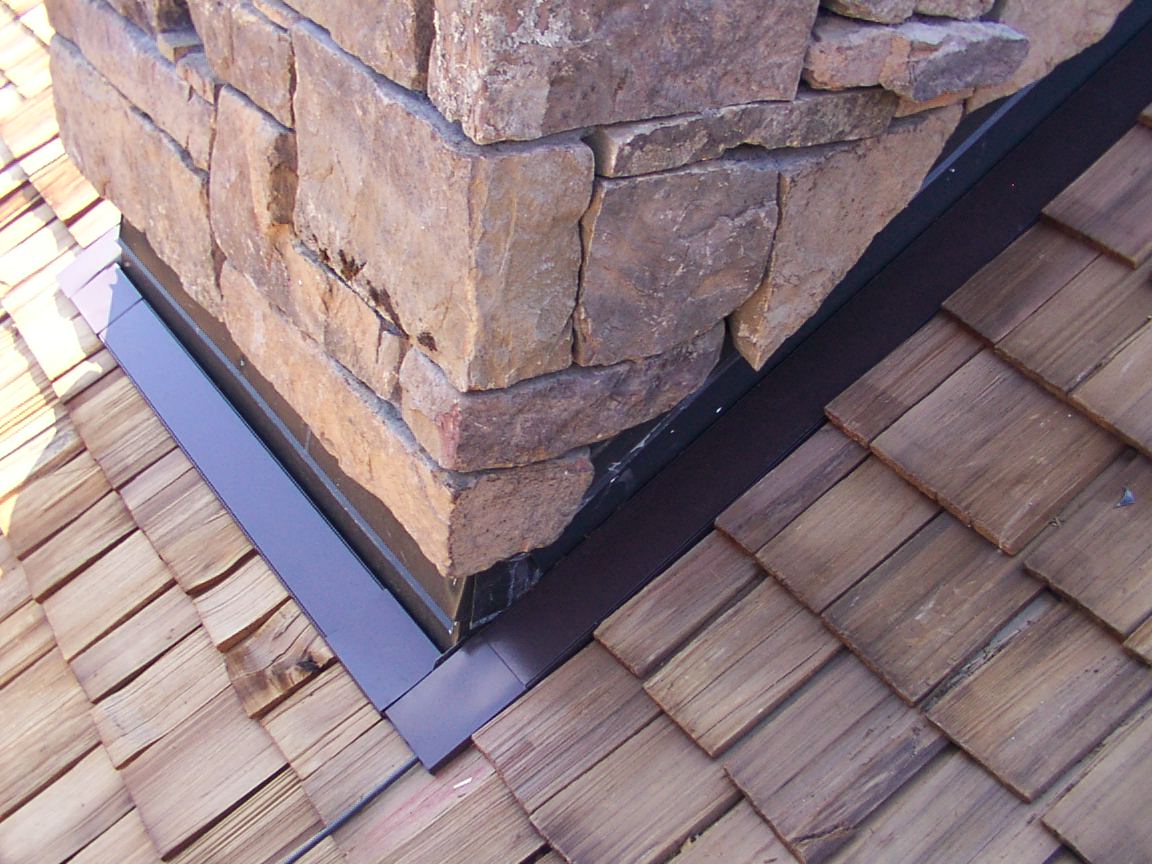

The IceFree Utility Panel should be installed where extra coverage is needed such as valleys, chimneys and other areas prone to ice buildup. It’s used to eliminate ice and snow on your roof in the winter time.

This panel is 6″ wide and is guaranteed to heat the entire length of the panel. The IceFree Utility Panel can be custom cut to fit the length of your roof’s crickets and valleys. We have many panel colors to choose from. See below.

Title
Button
Title
Button
Title
Button

Title
Button

Title
Button
Title
Button
Title
Button

Specifications

Material Selection

Recycled Aluminum Alloy 6063, Temper – T5

Color

Decorative Cladding

Panel Size

3″ x 5′ – Designed to eliminate icicles and ice dams in roof valley and cricket areas where a drain path is needed.

Heating Systems

Commercial Grade-Self Regulating Heat Cable (min. 5 Watt per foot in 100-130 VAC or 208-240 VAC). The IceFree Eave Panel 8″ Panel requires 2 feet of heat cable per foot of panel. Designed with 11mm or 14mm heat cables.

Components

The IceFree Valley Panel Includes: Aluminum Alloy Snap Loc Top, Aluminum Alloy Base Panel

Optional Items

Ambient and/or Moisture Sensor Controllers; Self-regulating heat cable for gutters and downspouts

Electrical Requirements

N.E.C. 426-28 requires 30mA ground fault circuit protection for snow and ice melting applications.

Attention: The IceFree Eave Panels in 8", 12" and 18" are not available in California.

Direct Heat Transfer

Built to Be the Most Energy-Efficient

All of our products can incorporate different types of heat sources, such as 11-14mm self-regulating heat cable, mineral insulated cable and hydronic/radiant tubing. Engineered Roof Deicing's technically advanced aluminum alloy extrusions are manufactured with specifically sized heat cables.

IceFree Eave Panels & Commercial Heated Roof Panels

Engineered Roof Deicing is proud to use 100% recycled aluminum.

COLOR SELECTION

IceFree Eave Panels are available with a decorative metal cladding, such as copper, zinc, CoreTen, or mill finish and .032 gauge aluminum flat sheet colors. The decorative metal cladding provides a cost-effective, attractive finish that will complement the look of your home.

IceFree Eave Panel Colors IceFree Zone System Colors

The silicone-modified polyester coatings on IceFree Zone Systems carry a 30-year warranty.
